Select several answers

Let a labeler record every issue that applies to a delivery.

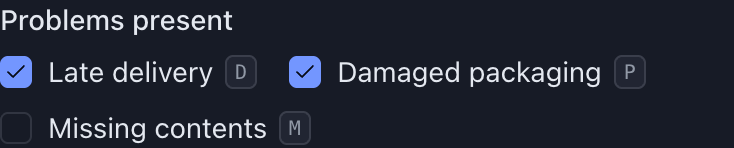

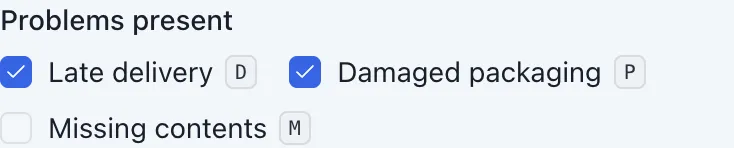

What the labeler sees

Captured from this recipe’s downloadable configuration and sample data. Select image to enlarge.

Try this example: download the complete configuration and sample CSV. Open the configuration in MLabel, then load the CSV.

View the complete configuration

{
  "$schema": "https://mlabel.vlad.gg/mlabel.schema.json",
  "version": 2,
  "network": {
    "updateChecks": false,
  },
  "input": {
    "fields": [
      {
        "name": "id",
        "type": "text",
        "display": "Record ID",
      },
      {
        "name": "comment",
        "type": "text",
        "display": {
          "title": "Customer comment",
          "titlePosition": "above",
        },
      },
    ],
  },
  "output": {
    "fields": [
      {
        "name": "id",
        "type": "text",
        "fill": {
          "kind": "copy",
        },
      },
      {
        "name": "issues",
        "type": "array",
        "display": "Problems present",
        "required": false,
        "items": {
          "type": "enum",
          "choices": [
            {
              "name": "delivery",
              "display": "Late delivery",
              "shortcut": "d",
            },
            {
              "name": "packaging",
              "display": "Damaged packaging",
              "shortcut": "p",
            },
            {
              "name": "contents",
              "display": "Missing contents",
              "shortcut": "m",
            },
          ],
        },
      },
    ],
  },
}

View the sample CSV

id,comment
r001,The parcel arrived late and the box was torn.

Configure it

Put an array of enum choices in output.fields. Each choice becomes a checkbox. Set required: false when an empty selection is a valid “no issues” answer.

The example includes D, P, and M shortcuts. They toggle a choice on or off. A labeler can also click each checkbox.

The relevant setting is in output.fields.1. The download above includes the surrounding configuration.

{
  "name": "issues",
  "type": "array",
  "display": "Problems present",
  "required": false,
  "items": {
    "type": "enum",
    "choices": [
      {
        "name": "delivery",
        "display": "Late delivery",
        "shortcut": "d",
      },
      {
        "name": "packaging",
        "display": "Damaged packaging",
        "shortcut": "p",
      },
      {
        "name": "contents",
        "display": "Missing contents",
        "shortcut": "m",
      },
    ],
  },
}

Try it and check the result

Select Damaged packaging, then Late delivery, and export with Save. The issues cell contains ["delivery","packaging"]: configured order, even if the labeler clicked in a different order. CSV adds quotation marks around the JSON array.

Try again with no boxes selected. Because the field is optional, the record can still be exported. A required multi-select needs at least one selection; use a separate explicit “None” decision if your project needs proof that someone reviewed every record.
